10/13/15 BTR-9

1 to 2 tonnes.

Explore Hyundai's range of reliable, smooth running and powerful 3-wheel electric counterbalance forklift trucks with load capacity up to 2000 kg.

Previous
10BTR-9

10BTR-9

  • Engine Model: AC drive motor
  • Engine Output: 4.3 kW
  • Travel Speed Loaded: 12.5 km/h
  • Travel Speed Unloaded: 13 km/h
  • Turning Radius: 1335 mm
  • Load Capacity: 1000 kg
  • Lifting Speed Loaded: 310 mm/s
  • Lifting Speed Unloaded: 530 mm/s
  • Battery Voltage: 24
13BTR-9

13BTR-9

  • Engine Model: AC drive motor
  • Engine Output: 4.3 kW
  • Travel Speed Loaded: 12.5 km/h
  • Travel Speed Unloaded: 13 km/h
  • Lifting Speed Unloaded: 530 mm/s
  • Battery Voltage: 24
  • Turning Radius: 1425 mm
  • Load Capacity: 1300 kg
  • Lifting Speed Loaded: 300 mm/s
15BTR-9

15BTR-9

  • Engine Model: AC drive motor
  • Engine Output: 4.3 kW
  • Travel Speed Loaded: 12.5 km/h
  • Travel Speed Unloaded: 13 km/h
  • Lifting Speed Unloaded: 530 mm/s
  • Battery Voltage: 24
  • Turning Radius: 1480 mm
  • Load Capacity: 1500 kg
  • Lifting Speed Loaded: 290 mm/s
Next

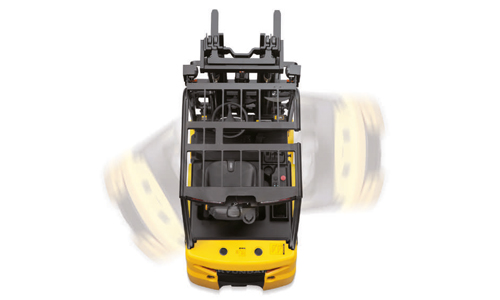

Designed for compact aisle width and turning radius

Designed for compact aisle width and turning radius

The combination of 3-wheel design and rear wheel drive offers central pivot turning. This allows the driver to work in very confined spaces.

Excellent visibility for safe operation

Excellent visibility for safe operation

Optimized lift cylinder arrangement provides operator with wider visibility. The panoramic mirror expands the driver's view when backing up.

Spacious operator cabin

Spacious operator cabin

The BTR is designed as a small, compact design, yet the operator compartment has ample room for virtually any operator.

Easy battery replacement

Easy battery replacement

The battery compartment is equipped with a side battery removal assembly for easy removal and replacement.
